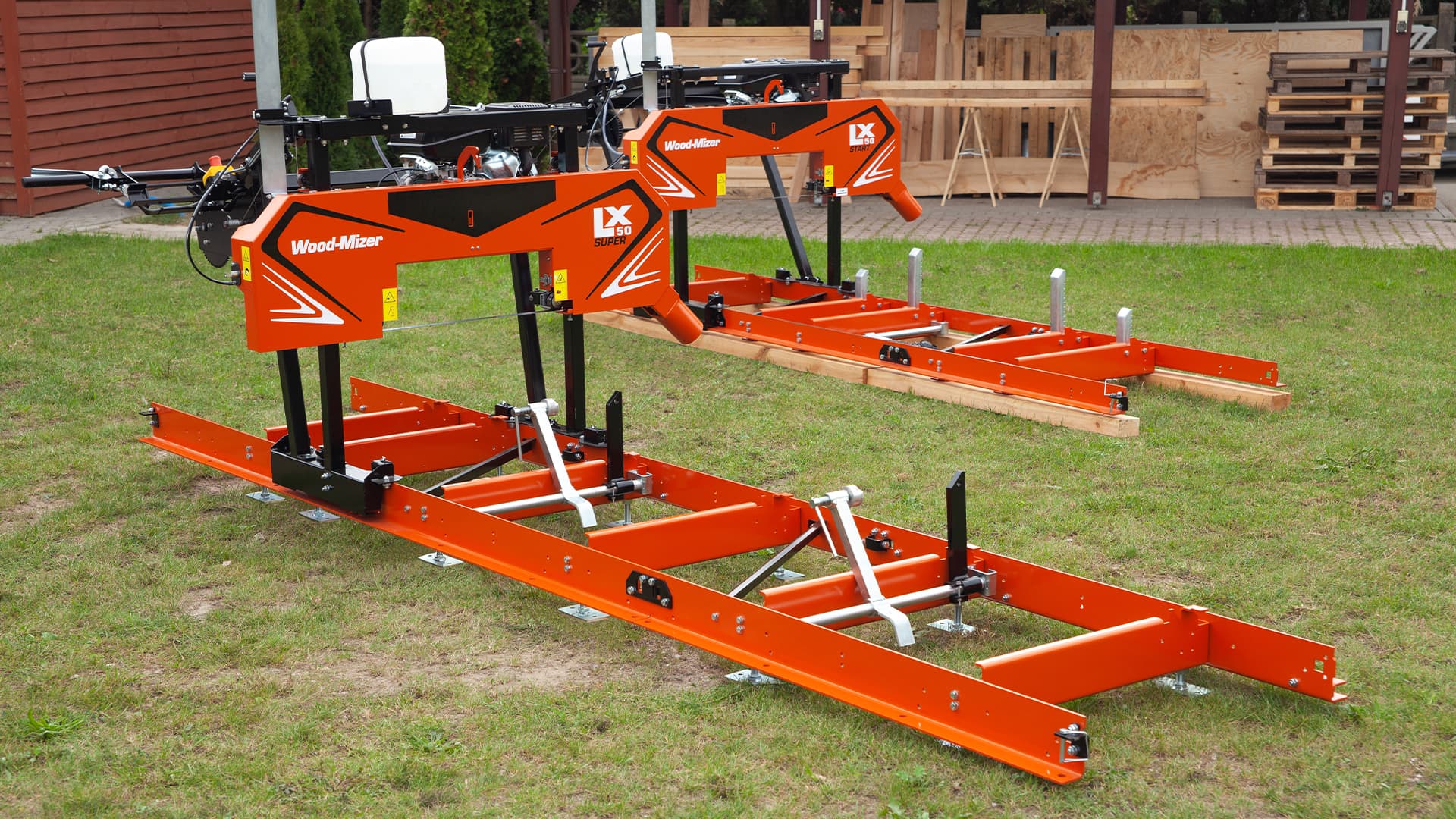

LX50SUPER Sawmill

The compact and economical LX50SUPER sawmill for hobbyists and small businesses

Experience the legendary reliability and durability of Wood-Mizer sawmills, now available at a record-low price. Order the LX50SUPER sawmill today and start your adventure in woodworking!

Доступно за замовленням, від:

Доступно за замовленням, від:

5,262.00


2-YEAR WARRANTY

MADE IN EU

SERVICE SUPPORT

FREE SHIPPING

The LX50 sawmill series are the most compact and budget-friendly Wood-Mizer machines for processing logs into lumber individually. Their popularity results from the perfect connection of simple design and proven mechanical solutions, combined with the quality and durability characteristic of legendary Wood-Mizer sawmills. The LX50 series is ideal for novice sawyers and hobbyists who expect efficient and precise wood processing for their own needs.

The LX50SUPER sawmill allows users to process logs up to 66 cm in diameter and a maximum length of 3,70 m, which can be customized to meet user needs by expanding the bed with additional segments measuring 1,53 m each.

In the LX50SUPER sawmill, the standard bed equipment includes two folding side supports adjusted on a rod, 2 log clamps, six cross-sections with reinforcements, and adjustable legs. Various accessories can be ordered for the sawmill, including bed extension segments, additional supports and clamps, log loading ramps, a wedge for compensating log taper, and a cant hook.

The operation of the LX50START sawmill is ergonomic and intuitive - the operator manually adjusts the sawhead height using a crank and smoothly moves the sawhead along the bed on rollers. The LX50START sawmill features a blade cleaning system with a manual valve and a blade tensioning system based on a screw with an indicator. The blade guide rollers ensure the stability of the blade, allowing for precise cutting.

The LX50SUPER sawmill utilizes a Kohler G14 (14 HP) gasoline engine or an EH5 (4 kW) electric motor. Kohler engines, renowned for their high operational quality and reliability, are employed for superior sawmill performance.

The product comes with a two-year warranty and access to professional technical support.

The LX50SUPER sawmill includes free shipping in the EU and is delivered on a compact pallet measuring 165 x 65 x 98 cm. Assembly and initial setup are explained in an instructional video available online.

Options

Additional Bed Sections

Additional Section: LX50-EXT-S

Length: 1,53 m; log clamp, side support and 4 adjustable legs included. Increases the max. log length to 5.2 m.

Additional Section: LX50-EXT

Length: 1,53 m; 4 adjustable legs included. Increases the max. log length to 5.2 m.

Features


Easy to use ergonomic

Low profile bed with adjustable legs for easy log loading


Adjustable Legs

Easy sawmill bed leveling thanks to 12 adjustable legs


Compact Packaging

Ships on a single pallet


Power options available

Choose between 14 HP Petrol or 5.5 kW electric motors


Thin-kerf Technology

Create less sawdust during processing which results in more final product yield from every log


Head up/down positioning

Handy crank allows you to move head up/down precisely


Rigid xFRAME

xFRAME with reinforced twin rail bed construction

Videos

Specifications

POWER
Power 5.5 kW Electric
14 HP Petrol (KOHLER Command PRO CH440)
CUTTING CAPACITY
Max. Log Diameter 66 cm
Max. Log Length 3.7 m (3 segments 1.53 m each, S3 Bed)
Max. Width of Cut 60 cm
Max. Cant Width 55 cm
Max. Depth of Cut 20 cm
HEAD FEATURES AND OPTIONS
Head Up/Down Hand Crank
Head Forward/Reverse Manual Push
Blade Lubrication Manual Valve
Blade Tension System Screw with Indicator
Sawdust Collection Port Diameter 101.6 mm (4”)
Additional Options N/A
BLADE
Length 3340 mm
Width 32 mm
Thickness 1,07 mm
BLADE WHEELS
Diameter 400 mm
Type Belted
Blade Wheel Material Cast Iron
BED FEATURES AND OPTIONS
Bed Construction Twin Rail
Angled Bed Rails N/A
Bed Extensions Additional Bed Sections: 1.53 m
Bed Features Adjustable Legs
LOG HANDLING
Manual 2 Manual Log Clamps
2 Side Supports (Folded, adjusted on the rod)
STANDARD Hydraulic N/A
SUPER Hydraulic N/A
SAWMILL FEATURES AND OPTIONS
Frame Construction xFRAME
Power Requirements 3 Phases, 400 V, 50 Hz / 10.5 A (5.5 kW)
Standards CE
Options Log Loading Ramps
Cant Hook
Log Wedge
