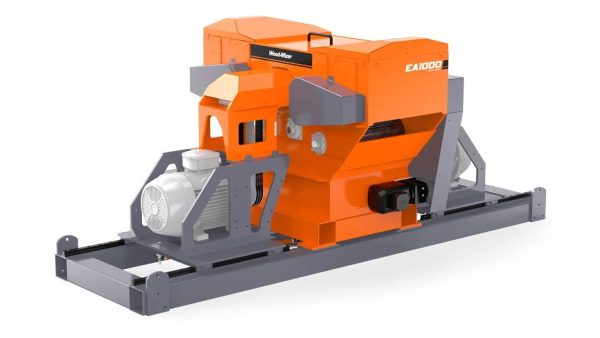

EA1000 Automated Edger
The World’s Most Cost-Effective Vision Optimized Edger System for Hardwood Mills!
The EA1000 Automated Edger is a robust, automated solution to your edging needs, using optical scanning technology to achieve high precision.
Доступно за замовленням, від:
Доступно за замовленням, від:
336,424.00 €
The Optimizing Edger uses optical scanning technology to achieve high precision and low waste edging of boards. The entire edging process is automated. First, each board is scanned. The profile of each board is then analyzed by a computer, which decides on the best product to maximize recovery. Decisions are based on both volume recovery and product value. After scanning, the boards pass through an alignment station and then are sawn. The EA1000 is capable of handling up to 25 boards per minute and is the ideal machine to edge boards coming from the Resaw. Electric servo sizing system achieves any width of cut without complication. Parallel PLC / computer control systems allow the machine to be switched over to manual mode with a single button. Online support allows our technicians to dial into your machine to troubleshoot it remotely. Overall, the Optimizing Edger is a simple, robust and automated solution to your edging needs.
Features:
- Incoming Transfer Deck
- Optimizing Vision Scanning System
- Offset Sawing
Specifications
| POWER SELECTIONS | |
|---|---|
| Power Selections | 30HP (22kW) electric 40HP (30kW) electric |
| CUTTING CAPACITIES | |
| Min Width of Cut | 40 mm |
| Production Rate | 20 boards/min (average) |
| BLADE | |
| Number of Blades | 2 |
| Blade Diameter | 450 mm |
| Blade Kerf | 5 mm |
| Blade Adjustment Method | Electric Servo |
| Blade position | Two Centered Blades |
| FEED SYSTEM & OPERATION | |
| Feed Speed | 80–137 m/min |
| Board Alignment | Automated mechanical board alignment |
| Material Hold-down | Powered Pneumatic Hold-down Rollers |
| Scanning | Optical Material Scanner System |
| Operator Controls | Stationary Control Station |
